Ampero II Stage: The Ultimate Effects Processor and Amp Modeler

Discover the Power of the Ampero II Stage

The Ampero II Stage is the most advanced effects processor and amp modeler from Hotone. Designed for demanding musicians, it combines impressive processing power, an intuitive interface, and unmatched flexibility to create unique tones in any situation, whether live or in the studio.

Main Features of the Ampero II Stage

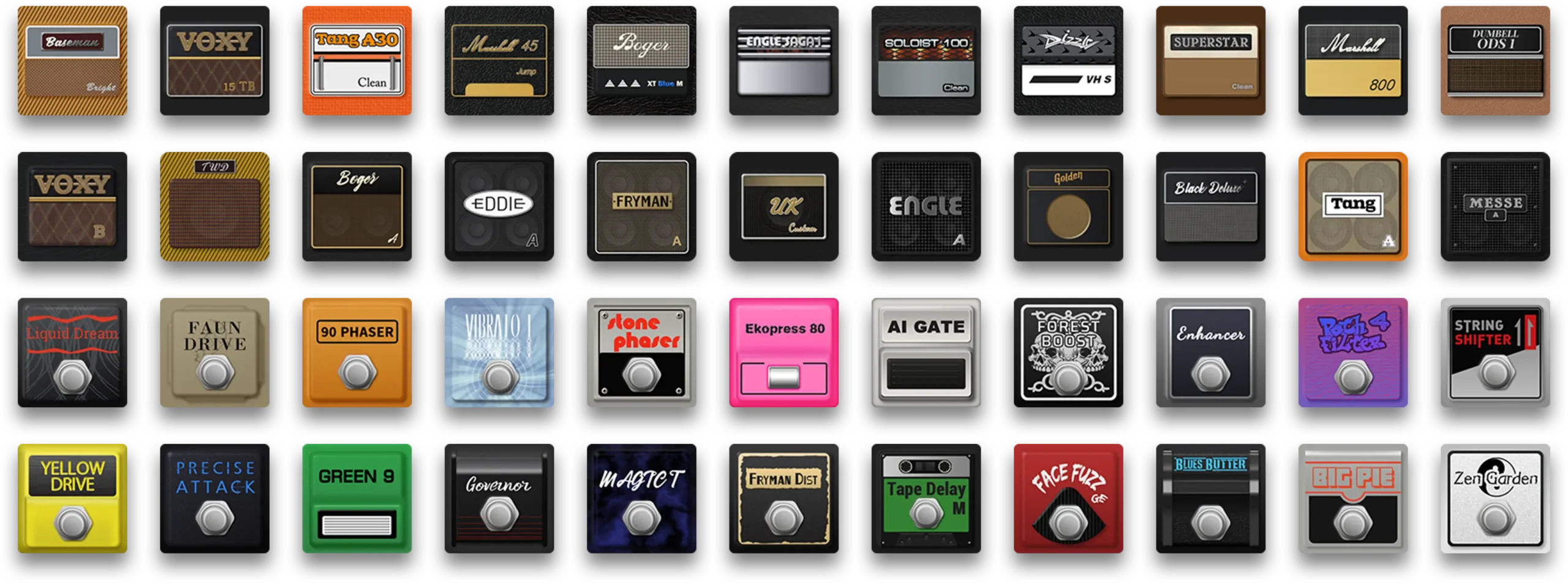

Over 460 Effects:

High-quality effects, from classic distortions to spatial reverbs and amp modeling with options to load custom Impulse Responses (IR).
– 87 amp models.
– 68 cabinet models.
– A more precise mic-cabinet algorithm based on realistic studio recording data.
– Independent preamp models.
– Independent power stage simulation.
– Over 100 legendary pedal models.
– Over 60 original Hotone effects, covering distortion, dynamics, filters, modulation, delay, and high-quality reverb.

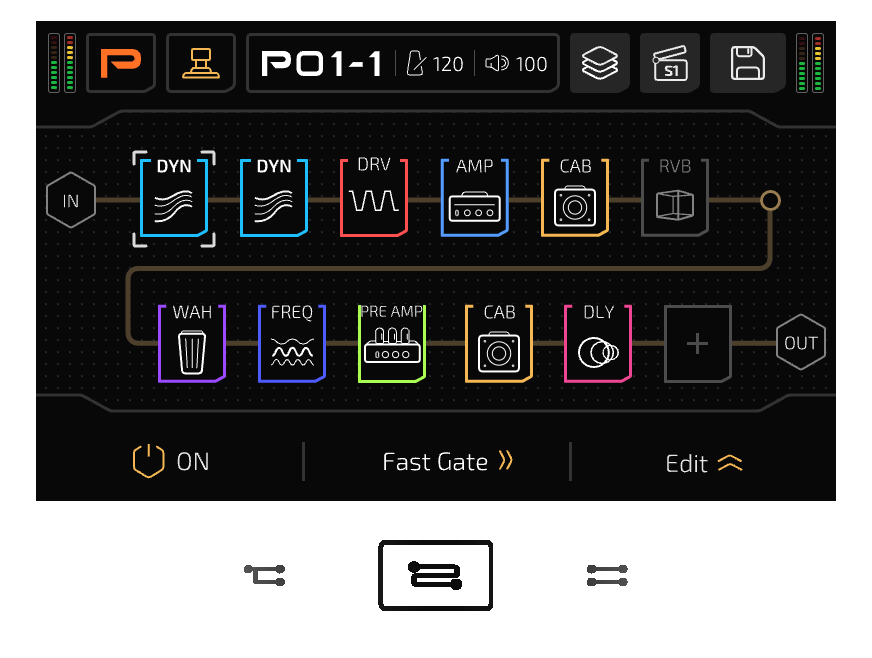

12 Simultaneous Effect Modules:

Two effect chains with 12 simultaneous slots to create complex and customized configurations (series and parallel). Create your sound by combining modules and effects with the same freedom as individual pedals. The Ampero II Stage can handle up to 12 effect modules simultaneously, whether identical or mixed.

5-Inch Touchscreen

Intuitive navigation for quick and precise real-time editing.

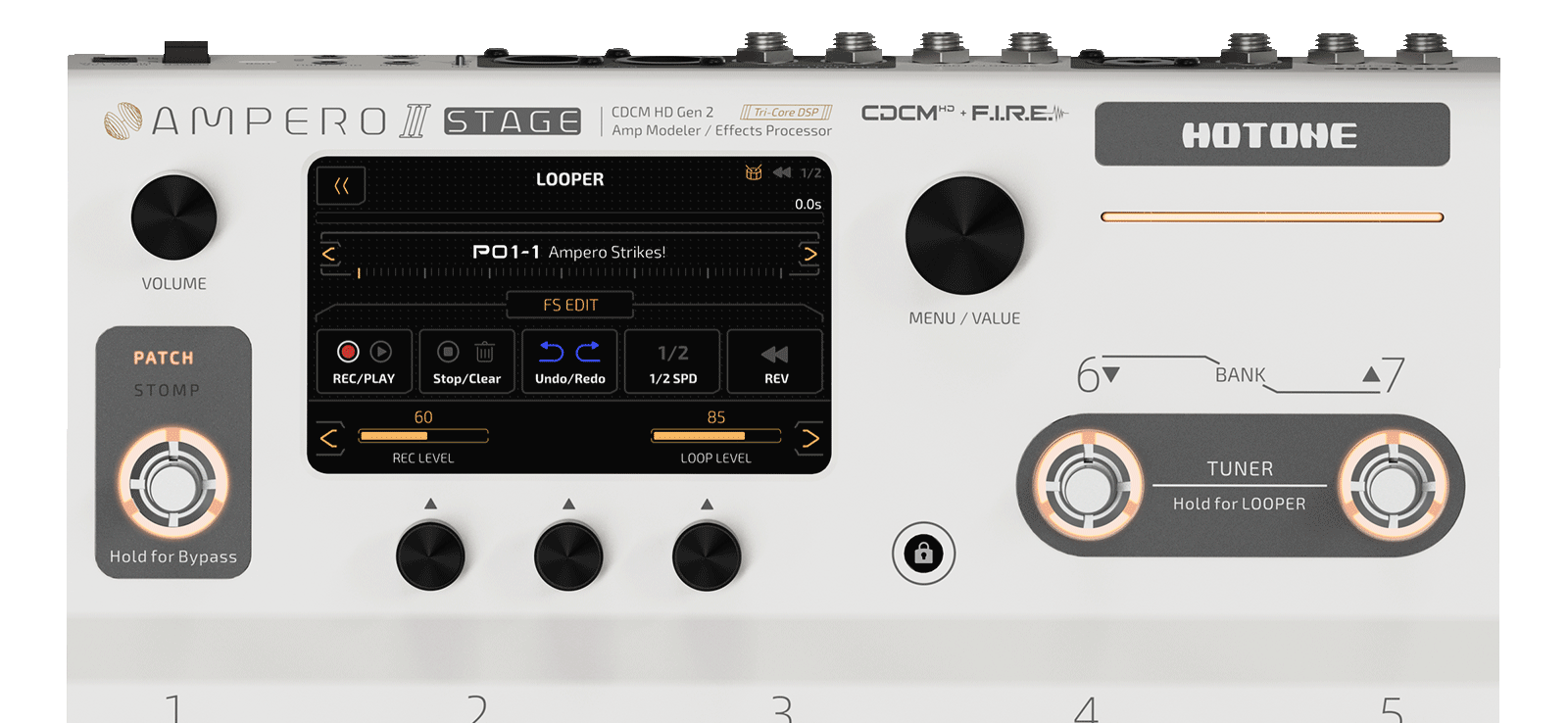

Stereo Looper

The stereo looper on the Ampero II Stage allows you to record, overdub, and play loops of up to 60 seconds. With features like half-speed, reverse, and undo/redo, it’s perfect for practicing, composing, and experimenting. It offers 100 drum rhythm styles to suit various musical genres.

USB Audio Interface

Connect your Ampero II Stage to your computer and record directly into your DAW. With 24-bit signal processing and a dynamic range of up to 127 dB, take your recordings to the next level.

Tone Catch Function: Capture Your Unique Sound

With CDCM HD+F.I.R.E. technology, the Ampero II Stage allows you to capture the sound of your favorite amps and pedals. Whether it’s a classic amp or a unique distortion pedal, Tone Catch faithfully reproduces every detail of your tone.

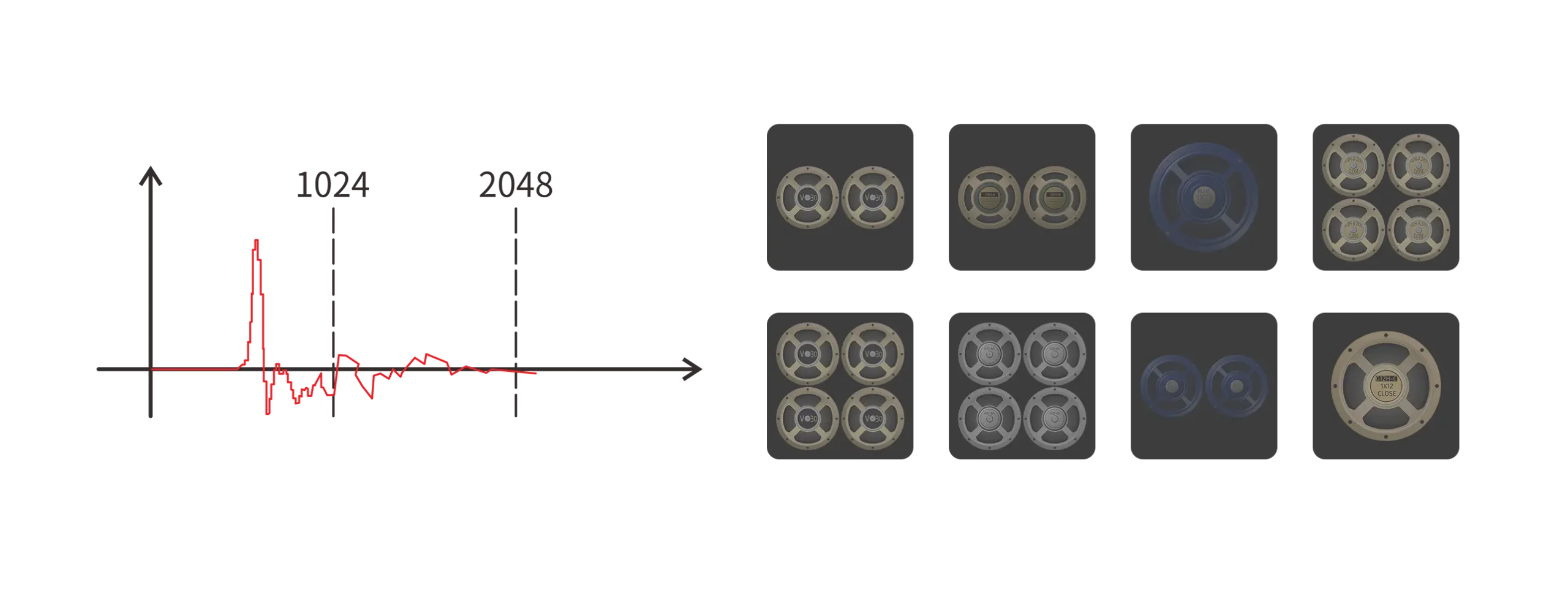

Improved IR Performance. Authentic Sound, Your Way

The Ampero II Stage supports up to 2048 sample points, double its predecessor, for accurate reproduction of captured IR sources and acoustic environments. With 20 Celestion®-authorized IRs from classic speaker cabinets and 50 user IR slots, your tone will reach new heights.

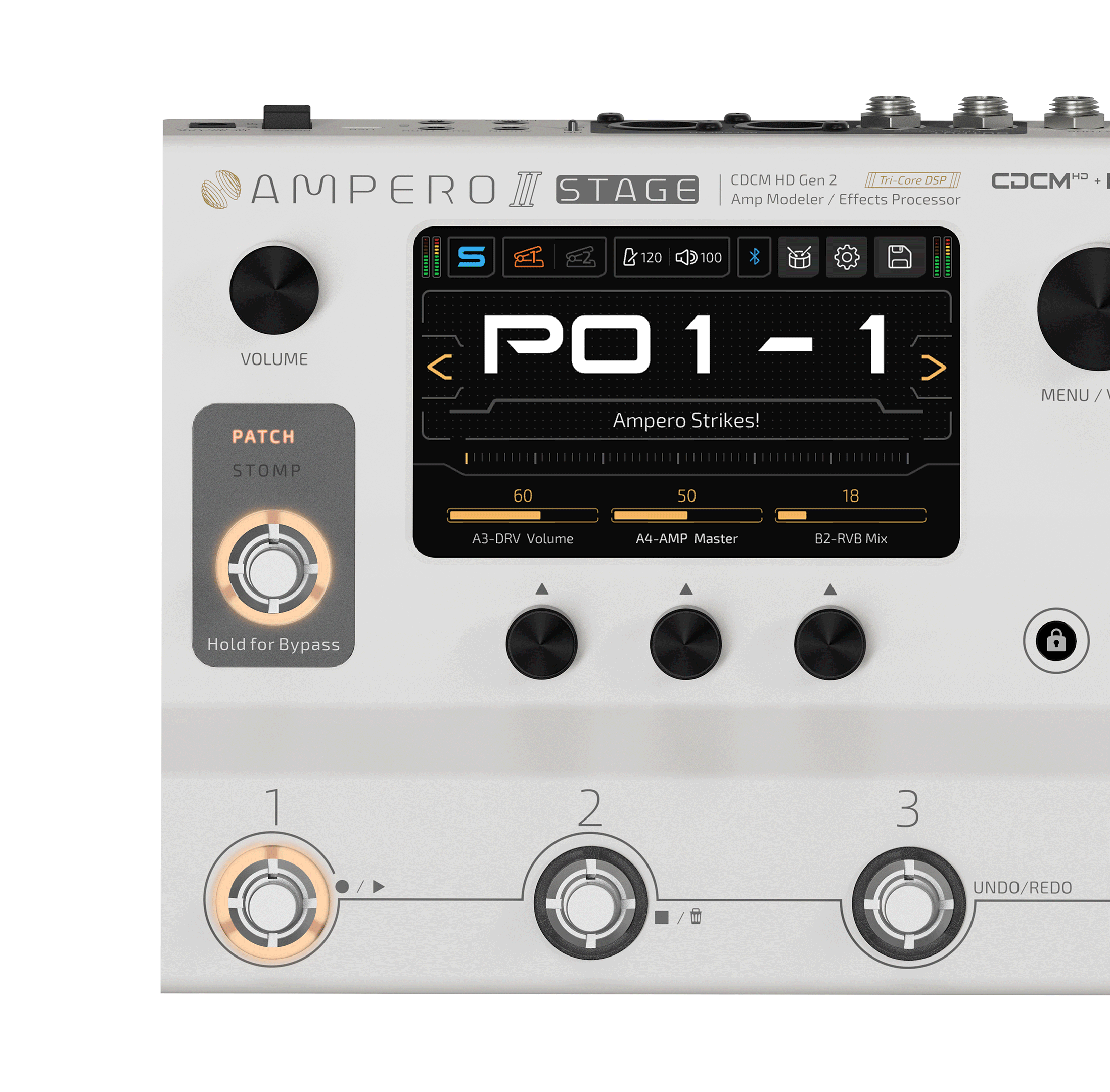

Versatile Operation Modes

The Ampero II Stage offers two versatile operation modes: PATCH and STOMP, each with its dedicated mode indicator and a dedicated footswitch to switch between modes. Both modes offer different display options to suit your preferences, seamlessly integrating into your workflow.

Patch Mode

Switch between 300 preconfigured or custom patches with a single click. Each patch can have up to 5 scenes for quick changes during a performance.

Stomp Mode

In STOMP mode, customize the remaining seven footswitches to control individual or multiple modules, giving you total creative freedom.

Tone Catch: Capture the Sound of Your Favorite Devices

With the Tone Catch function, you can capture the tone of your amps, pedals, and other devices using CDCM HD+F.I.R.E. technology. Save your captured tones and use them directly in the Ampero II to recreate your favorite sounds anywhere.

Triple-Core Digital Platform. Elevating Signal Processing:

The Ampero II Stage adopts the latest triple-core digital platform and high-quality AD/DA converters from the ESS® Sabre® series. Combined with CDCM HD and F.I.R.E. modeling technology, it delivers dynamic, expressive, musical, and authentic tones like never before.

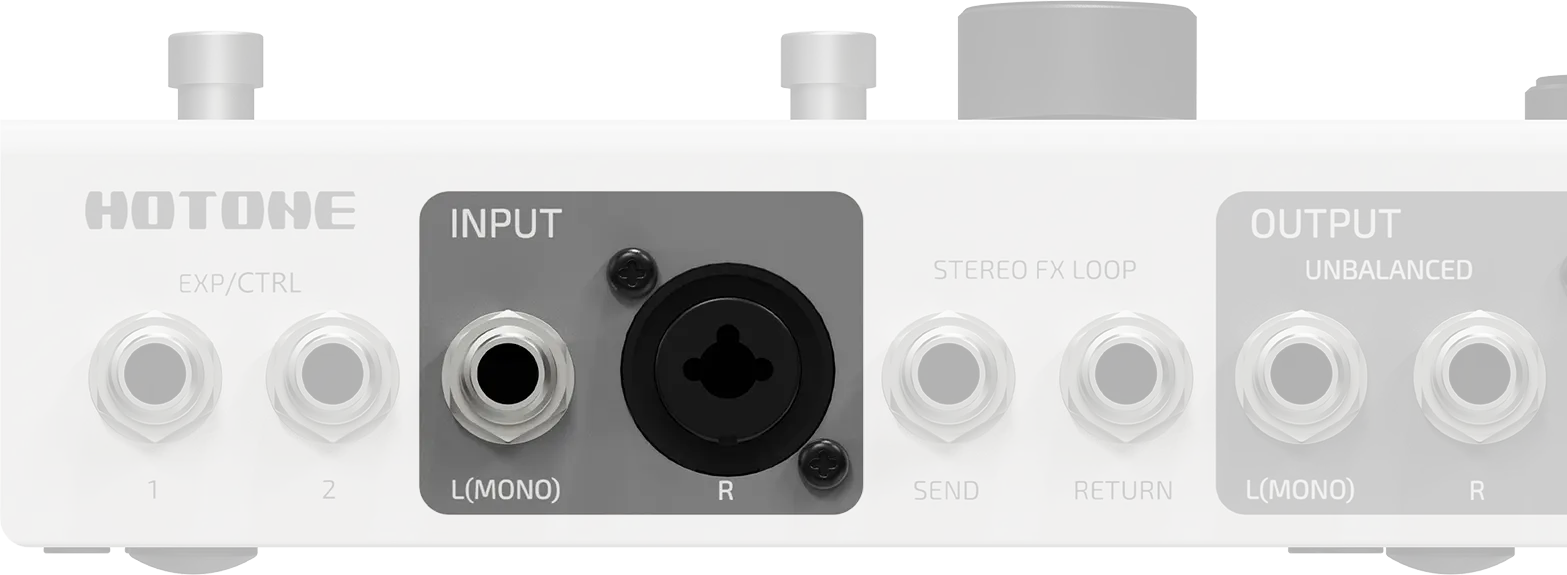

Unleash Your Performance. Play and Sing with Freedom:

The Ampero II Stage offers a stereo input, with the right channel featuring a combo input that supports line and microphone inputs. It provides 48V Phantom Power and up to 52dB of gain, compatible with dynamic and condenser microphones. With five different input modes, it’s suitable for guitars, basses, synths, and vocals. Whether you’re a guitarist or vocalist, the Ampero II Stage is your perfect companion.

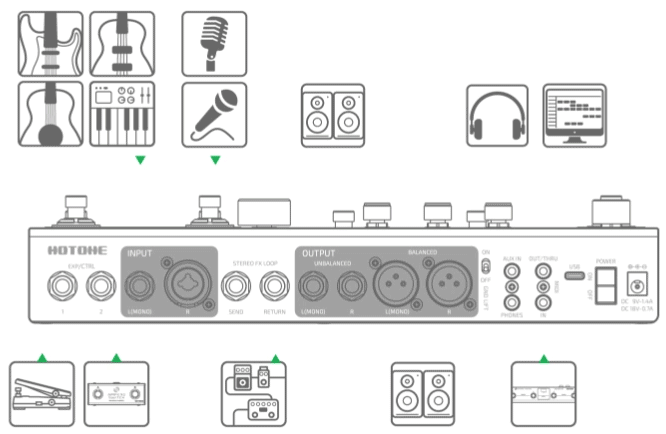

Ampero II Stage Connectivity

Stage-Ready Connectivity

The extensive input and output options of the Ampero II Stage are designed for the stage. The balanced and unbalanced stereo outputs offer independent signal processing with separate volume control, perfect for sending one signal to the PA system and another to your amp.

Professional Desktop Audio Interface. Record and Stream with Ease:

With 8×8 USB audio functionality and variable sample rates from 44.1kHz to 192kHz, the Ampero II Stage is a versatile solution for recording and streaming. It also supports recordable Bluetooth audio inputs, making it perfect for live streaming. Connect your phone via an OTG cable, and you’re ready to stream online along with your backing tracks.

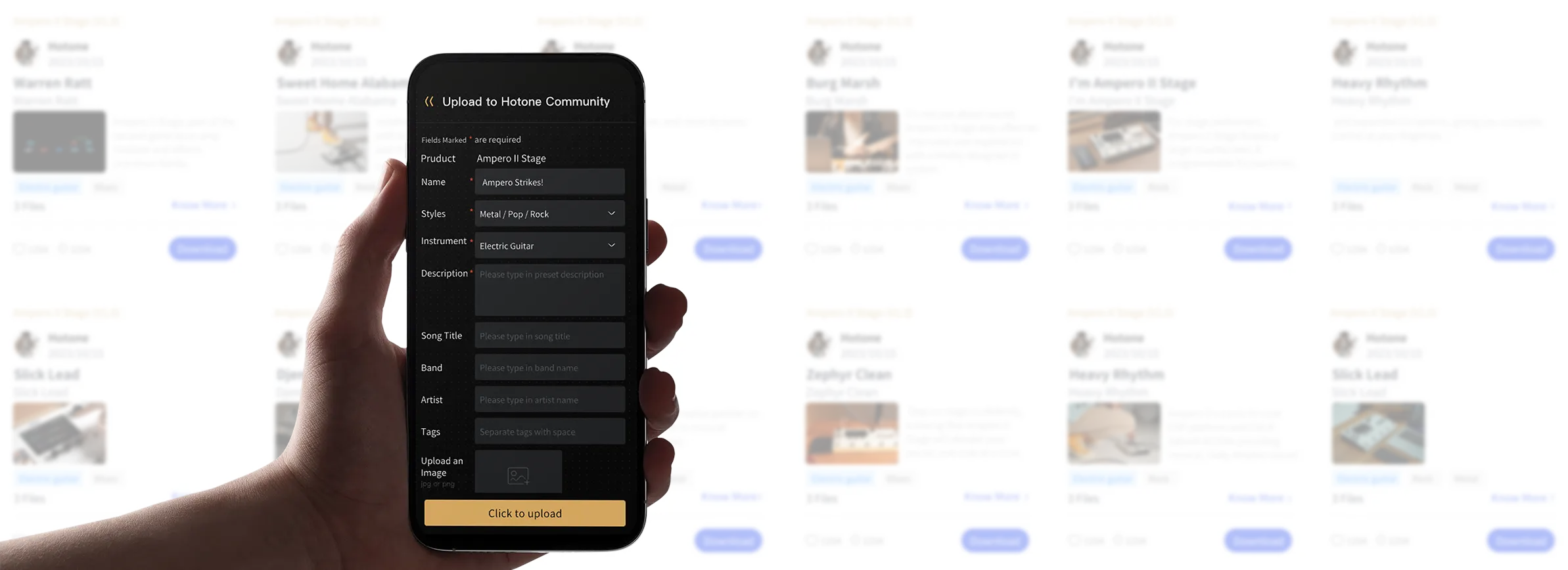

Share Sounds with a Single Click. Connect in the Cloud:

The Ampero II Stage includes dedicated software for Win/Mac/iOS/Android with access to the new Hotone community. Easily share your patches and download others’ with a single click, connecting with other users and collaborating artists.

Bluetooth. Wireless Control at Your Fingertips:

The Ampero II Stage features an integrated Bluetooth module, compatible with iOS/Android mobile apps, making on-stage adjustments easy. Say goodbye to bending down to tweak settings during your performance. It also supports Bluetooth MIDI, pairing with controllers like the Ampero Control, eliminating cable clutter.

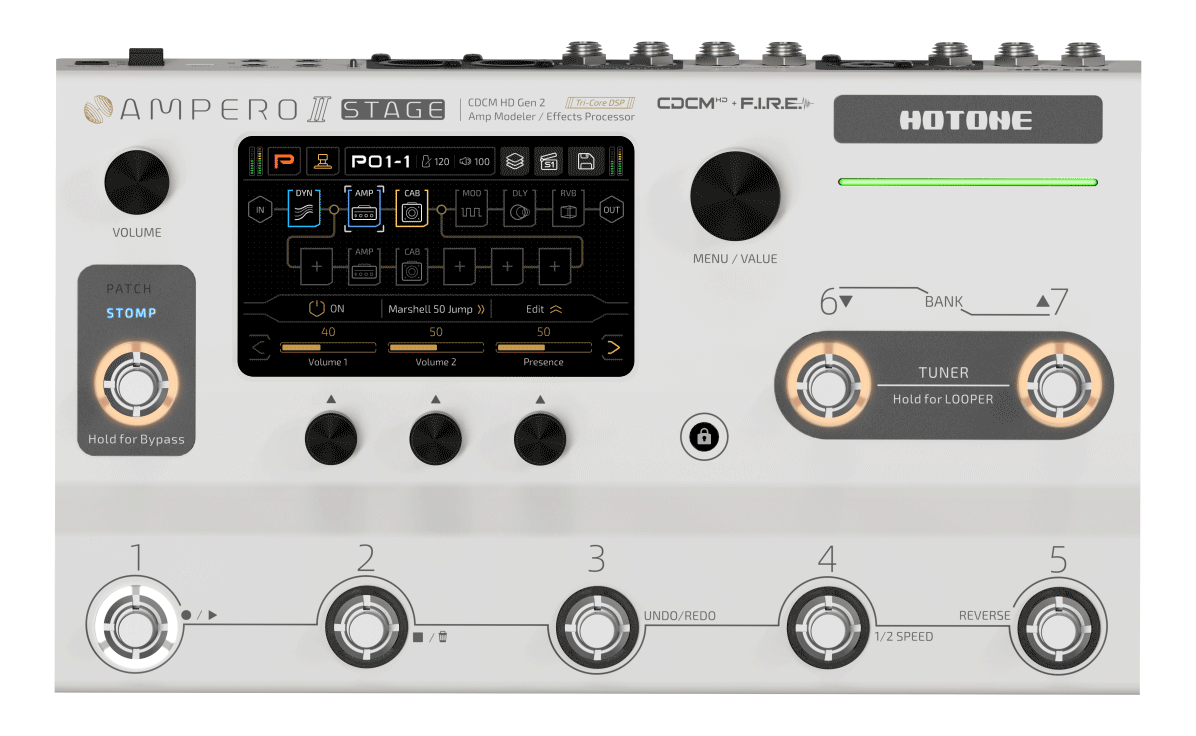

Smooth Transitions on Stage with Five Scenes:

We’ve introduced a new “Scenes” feature, allowing smooth sound transitions. Each patch on the Ampero II Stage can contain up to five scenes, enabling you to switch effects and parameters effortlessly during different sections of your songs. Transition from chorus to verse with elegance.

Possible Connections

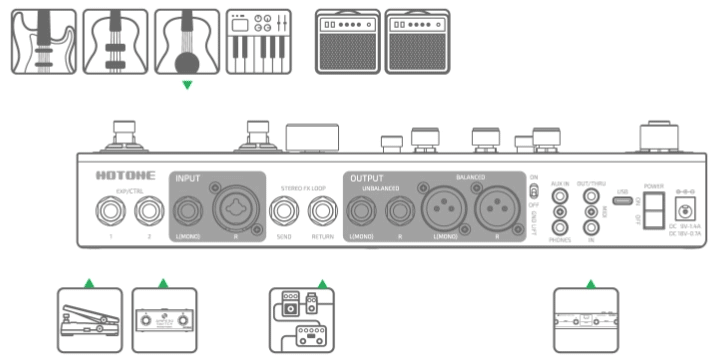

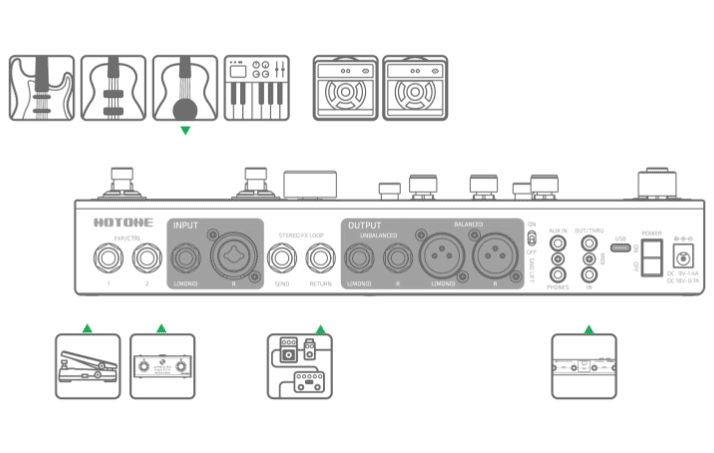

Connection to an Amplifier Input:

Connect the output of the Ampero II Stage to the amplifier input. You can use additional external controllers or other effect pedals in the FX loop of the Ampero II Stage if needed.

Connection to the FX Loop Return of Amplifiers or Pure Power Stage Inputs (e.g., Loudster):

When connected to power stages, you can adjust the parameters of the Ampero II Stage as if it were a real amp. When connected to the FX loop return jack of certain guitar amps, you’ll get the most enjoyment using the specially designed PRE AMP modules in the Ampero II Stage.

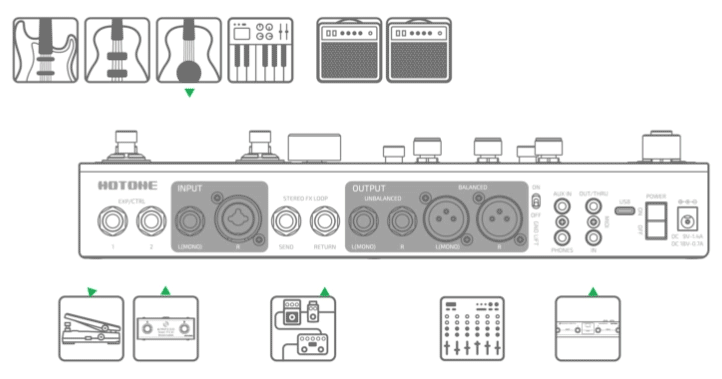

Dual Outputs on Stage:

In this case, we recommend using the Y-A/B chain template:
Chain A: Normal output with cabinet simulation, sent directly to the mixing desk via XLR outputs;
Chain B: Without cabinet simulation, sent to instrument amps on stage via unbalanced outputs for monitoring. In this case, you can also capture instrument amps and mix them with Chain A outputs at the mixing desk.

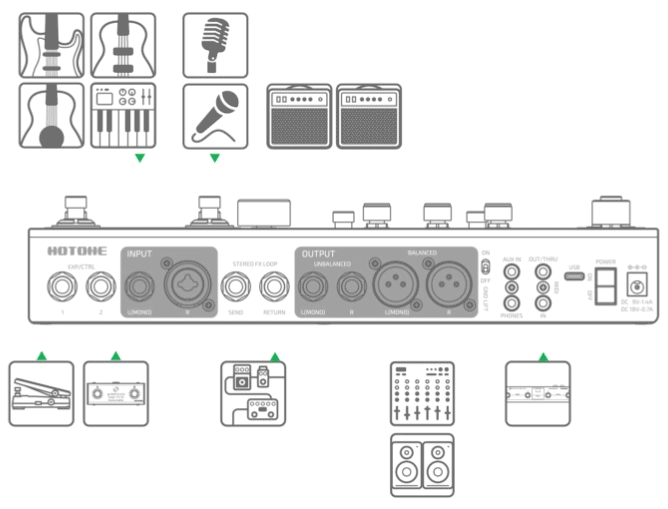

Singer Using Instruments:

In this case, we recommend using independent effect chains:
Chain A: Processes only the instrument signal and sends it to instrument amps via unbalanced outputs.
Chain B: Processes the vocal signal and sends it to the mixing desk or full-range speakers via XLR outputs.

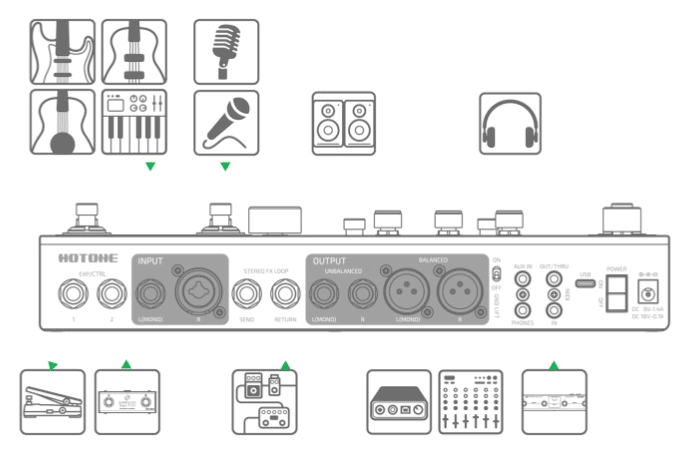

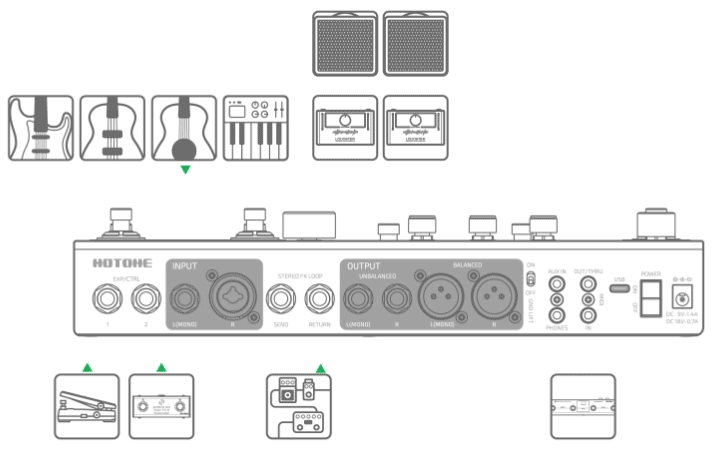

Connection to Full-Range Devices like Mixing Desks, Audio Interfaces, and Headphones:

Depending on your needs, ideal tones will be presented satisfactorily whether you’re practicing at home or performing live.

Connection to Your Desktop/Laptop as an Audio Interface:

Connect the USB jack to your computer and connect it to monitors, not forgetting the software and driver setup. Now, your own mini music studio is complete.

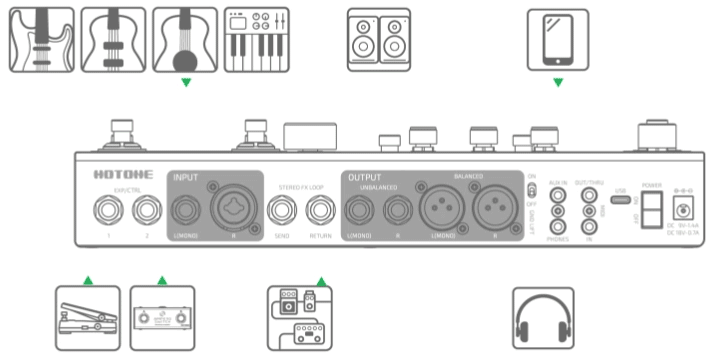

Practice with Aux/Bluetooth Input:

Find an aux cable and connect it to the Ampero II Stage with your music player. You can also pair and play music via a Bluetooth connection. Then, you can practice and improvise as much as you want with backing tracks or the built-in drum/looper.

Features of the Ampero II Stage

Second-generation amp modeler and effects processor with stage-ready features.
Ampero II’s iconic triple-core DSP platform and ESS® Sabre® AD/DA converters deliver a musical and lively Ampero sound.
CDCM HD & F.I.R.E. modeling system ensures high-end tonal expressiveness and a realistic playing experience.
24-bit signal processing, with a dynamic range of up to 127dB (digital to analog; actual data may vary depending on usage scenarios).
A larger and sharper 5-inch dynamic touchscreen and a new user interface design for smoother, more intuitive, and convenient interaction.
Highly customizable DUAL effect chain with support for multiple series/parallel signal paths.
Add ANY effect module you want to the effect chain.
Stereo inputs/outputs and stereo FX loop jacks for greater routing/tone possibilities.
Input R with built-in microphone preamp and phantom power to accommodate dynamic and condenser microphones.
Up to 12 simultaneous effect modules.
Updated effects library with 460+ effects, including next-gen higher-quality algorithms from Hotone.
CDCM HD & F.I.R.E. modeling effects including:
– Over 90 amp models.
– 68 cabinet models.
– A more precise mic-cabinet algorithm based on realistic studio recording data.
– New preamp models.
– Independent power amp simulation.
– Over 100 legendary pedal models.
60+ original Hotone effects (including drive, dynamics, filters, modulation, delay, reverb, vocal models, and more).
Tone Catch technology that captures classic amps/pedals, integrates with the Ampero II Stage, and shares through the Hotone community.
Dedicated IR loader module with support for third-party IRs, up to 50 user IR slots.
20 Celestion®-authorized IRs from classic speaker cabinets included – Powered by Celestion® Digital.
Supports up to 2048 sample points for better tonal resolution.
Dual-mode Bluetooth® 4.2 module for audio playback and remote control via iOS/Android apps; supports Bluetooth® MIDI.
Free software for Win/Mac/Android/iOS for firmware updates, effect/IR loading/editing/management, etc.
8-in, 8-out USB audio interface with sample rate switching from 44.1 to 192kHz, supports Reamp function.
Built-in acoustic effects and presets.
300 presets (60 banks x 5 patches).
Built-in stereo looper with a maximum recording time of 60 seconds and undo/redo function.
5 different input modes supporting electric guitar/acoustic guitar/microphone/line input.
Independent BAL/UNBAL/Headphone output processing for independent volume control or different signal outputs.
8 assignable footswitches with multicolor halo LEDs, with two working modes and customization support.
Scenes function offering 5 scenes in a patch: switch effects on/off and different parameters without latency.
Built-in multifunction LED light strip.
Customizable main display modes and theme colors.
Authentic stereo processing.
MIDI inputs/outputs and two EXP/CTRL jacks for expanded controls.
Constant firmware updates based on user feedback.
Future new features available (e.g., Wi-Fi).
Lightweight and durable aluminum casing for travel.
9-18V DC power supply.

The mentioned manufacturer and product names are trademarks or registered trademarks of their respective owners.
The trademarks were used merely to identify the sound character/features of the products.

Technical Specifications of the Ampero II Stage

Digital Audio Signal Processing Effects:

24-bit depth, 44.1 kHz sample rate.

Frequency Response:

20Hz – 20kHz ± 1dB.

Dynamic Range:

Max. 127 dB (digital to analog).

Effects:

460 (including global EQ).

Number of Effect Modules:

16.

Effect Slots:

Total of 12 simultaneous effect slots.

Patches (Presets):

300.

Looper Time:

60 seconds in stereo.

Bluetooth®:

4.2 Dual-Mode (BLE and audio) with support for Bluetooth® MIDI.

Inputs:

One 1/4″ (TS) instrument jack with 3 input mode selector.
One XLR or 1/4″ (TS) combo jack with 5 input mode selector and microphone preamp (max gain of 52 dB).
One 1/8″ stereo aux input jack (Aux In).
Two 1/4″ (TRS) input jacks for expression pedal/momentary footswitch (EXP/CTRL).
One 1/4″ (TRS) unbalanced stereo FX loop return jack.
One 1/8″ (TRS) MIDI input jack.

Outputs:

Two 1/4″ (TRS) unbalanced stereo output jacks.
Two XLR balanced stereo output jacks, with ground lift switch.
One 1/4″ (TRS) unbalanced stereo FX loop send jack.
One 1/8″ stereo headphone output jack.
One 1/8″ (TRS) MIDI output jack.

Input Impedance:

1/4″ (TS) input: E.GT: 1 MΩ; A.GT: 4.7 MΩ; LINE: 10 kΩ.
XLR input: 5 kΩ.
FX loop return: 100 kΩ.
Aux In: 10 kΩ.

Output Impedance:

Unbalanced output: 1 kΩ.
Balanced output: 1 kΩ.
FX loop send: 1 kΩ.
Headphones: 47 Ω.

Input Level:

Input: -17.78 dBu (nominal); 14.5 dBu (max.).
FX loop return: -17.78 dBu (nominal); 14.5 dBu (max.).
Aux In: -17.78 dBu (nominal); 20 dBu (max.).

Output Level:

Output: -11.76 dBu (nominal); 26.25 dBu (max.).
FX loop send: -17.78 dBu (nominal); 14.5 dBu (max.).
Headphones: -7.4 dBu (nominal); 18.3 dBu (max.).

Display:

5″ dynamic color touchscreen with 800 x 480 pixel resolution.

USB Port:

USB 2.0 Type-C port; Supports USB Audio 2.0; Supports sample rate switching from 44.1 to 192 kHz.

Impulse Response (IR) Processing:

Supports 24-bit/44.1 kHz mono WAV files, 1024 and 2048 points; supports up to 50 user IRs.

Power Requirements:

9-18V DC, center negative.

Current Consumption:

Max. 1.4 A (9V DC).

Dimensions:

301 mm (width) x 180 mm (depth) x 58 mm (height).

Weight:

1895g.

Downloads

Direct Download

Open in a New Tab (On Your Computer)

Ready to Take Your Music to the Next Level?

The Ampero II Stage is the ultimate tool for musicians seeking quality, versatility, and ease of use. Whether you’re recording in the studio or performing live, this device offers everything you need to create incredible sounds.

Don’t miss the chance to get the Ampero II Stage and take your performance to the next level. Buy now on Amazon at the official Hotone store and enjoy fast shipping and the manufacturer’s warranty.
